Linear Regression Intercept

Author: Optuma Team Last updated: Jul 25, 2020 05:42
Included in Trader Services Included in Professional Services Included in Enterprise Services

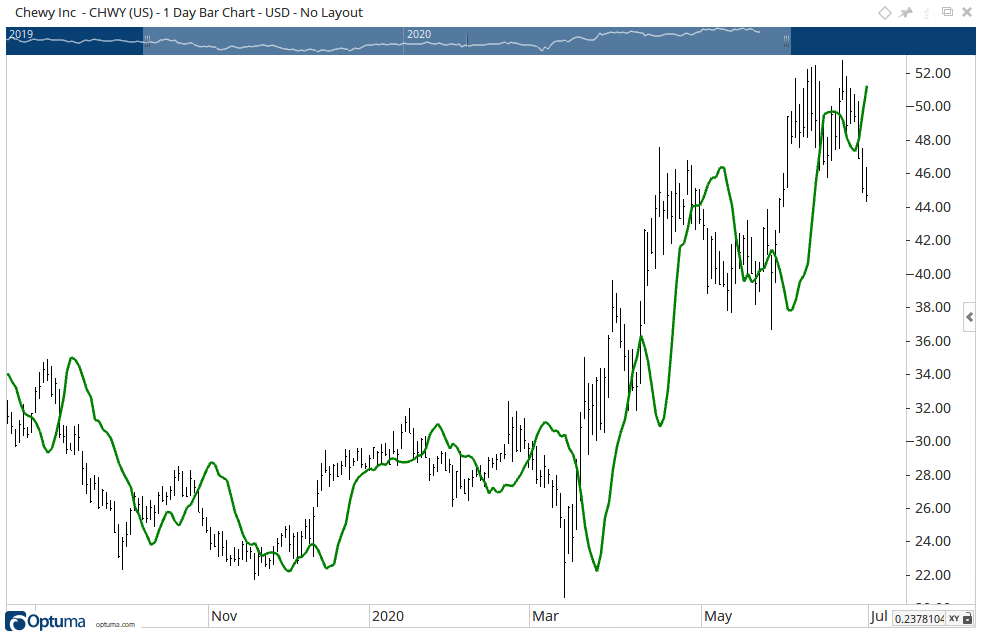

The Linear Regression Intercept tool calculates the line of best fit to the market price, using the least squares method, and is plotted on the chart in a way that is similar to a moving average. However, rather than being a simple averages calculation, the Linear Regression Intercept tool represents a statistically fitted line which reacts faster to changes in price when compared to a Moving Average.

To add the tool to your chart, select the tool from the Statistical tool group, and left-click on the chart or indicator on which you wish to add the tool. Optuma will then draw the tool using the default settings.

Scripting Function: LRINT()

Actions & Properties



Copy Data to Clipboard: Will copy the tool’s values to the clipboard which can then be inserted into a spreadsheet, for example, allowing for further analysis.

Add Technical Alert: When selected, a Technical Alert will be created for the selected security.

Add to Toolbar: Adds the selected tool to your custom toolbar.

Apply Settings to All: When multiple Linear Regression Intercept tools have been applied to a chart, page or workbook, this action can be used to apply the settings of the one selected to other instances of the tool. This is a great time saver if an adjustment is made to the tool - such as line colour - as this allows all the other Linear Regression Intercept tools in the chart, page or entire workbook to be updated instantly.

Copy Tool: Allows you to copy the selected tool, which can then be pasted onto a different chart window.

Move to Back: If the tool is displaying in front of other tools or indicators clicking this action will move the tool view to the background.

Move to Front: If the tool is displaying behind other tools or indicators on the chart, clicking this action will bring the tool to the forefront.

Restore Default Settings: Click this action if you have adjusted the default settings of the tool, and wish to return to the standard properties originally installed with Optuma.

Save Settings as Default: If you have adjusted any of the tool’s properties (colour, for example) you can save the adjustments as your new default setting. Each time you apply a new Linear Regression Intercept to a chart, the tool will display using the new settings.

Delete: Deletes the tool from the chart.



Tool Name: Allows you to adjust the name of the tool, as it’s displayed in the Structures Panel.

Regression Period: The number of bars that are used in the calculation of the tool.

Calc Using: This option is used to determine which components of the data are used in calculating the Linear Regression Intercept. You can choose from, Open Price, Closed Price, High Price, Low Price, HL Average (High + Low / 2), HLC (High + Low + Close / 3), OHLC (Open + High + Low + Close / 4), OC (Open + Close / 2), Median.

Plot Style: Adjusts the display style of the Linear Regression Intercept tool. There are 6 options available: Line, Dot, Histogram, Step, Shaded, Shaded Step.

Line Style: When Line is selected as the Plot Style, the Line Style property allows you to adjust the type of line displayed. There are 8 options available: Solid, Dots, Dash, Dash Dots, Long Dash, Long Dash Dot, Long Dash Dot Dot, Stippled.

Line Width: Allows you to adjust the width of the Linear Regression Intercept tool. Moving the slider bar to the right increases the thickness of the line.

Line Colour: Allows you to adjust the colour of the Linear Regression Intercept tool.

Fill Up / Down Barrier: When the Plot Style is set to Shaded you are able to adjust the barrier value. The default value is 0.00.

Fill Up Colour: When the Plot Style is set to Shaded you are then able to alter the Fill Colour for the tool.

Fill Down Colour: When the Plot Style is set to Shaded you are then able to alter the Fill Colour for the tool.

Tool Transparency: Use this slider bar to adjust the transparency of the tool, moving the slider to the left will increase the transparency.

Visible: Un-tick this checkbox to hide the tool from the chart.

Show In Price Scale: When selected the current Linear Regression Intercept value will be displayed in the Price Scale.
