Inertia Indicator

Author: Optuma Team Last updated: Jul 25, 2020 05:20
Included in Trader Services Included in Professional Services Included in Enterprise Services


The Inertia Indicator is a smoothed version of the RVI indicator and attempts to extrapolate the prevailing price trend. The smoothing effect is calculated with a combination of Exponential Moving Average and Linear Regression.

When this indicator is above 50%, an increasing price trend is indicated. When the indicator falls below 50%, a decreasing price trend is indicated.

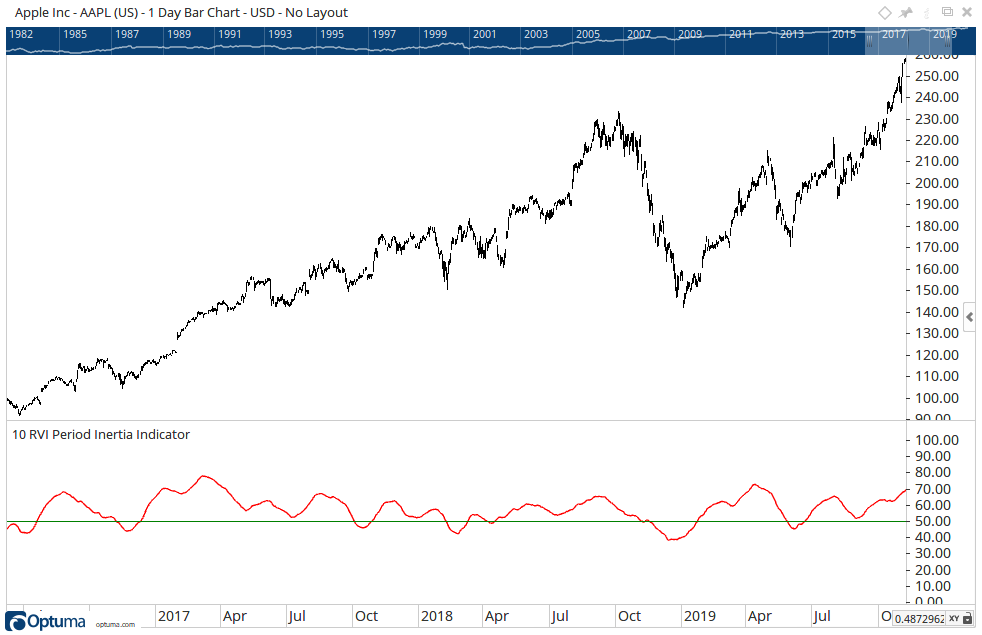

MASInertia Large
To add the tool to your chart, select the tool from the Price tool group, and left-click on the chart to add the tool. Optuma will then draw the tool in a window below the chart using the default settings.

Scripting Function: INERTIA()

Actions & Properties



Copy Data to Clipboard: Will copy the tool’s values to the clipboard which can then be inserted into a spreadsheet, for example, allowing for further analysis.

Add to Toolbar: Adds the selected tool to your custom toolbar.

Apply Settings to All: When multiple Inertia Indicator tools have been applied to a chart, page or workbook, this action can be used to apply the settings of the one selected to other instances of the tool. This is a great time saver if an adjustment is made to the tool - such as line colour - as this allows all the other Inertia Indicator tools in the chart, page or entire workbook to be updated instantly.

Copy Tool: Allows you to copy the selected tool, which can then be pasted onto a different chart window.

Move to Back: If the tool is displaying in front of other tools or indicators clicking this action will move the tool view to the background.

Move to Front: If the tool is displaying behind other tools or indicators on the chart, clicking this action will bring the tool to the forefront.

Restore Default Settings: Click this action if you have adjusted the default settings of the tool, and wish to return to the standard properties originally installed with Optuma.

Save Settings as Default: If you have adjusted any of the tool’s properties (colour, for example) you can save the adjustments as your new default setting. Each time you apply a new Inertia Indicatr to a chart, the tool will display using the new settings.

Delete: Deletes the tool from the chart.



Tool Name: Allows you to adjust the name of the tool, as it’s displayed in the Structures Panel.

RVI Bars: Sets the number of bars used for the Relative Volatility Index component of the Inertia Indicator.

Smoothing Bars: Sets the number of bars used in the Exponential Moving Average component of the Inertia Indicator.

Equilibrium Level: Sets the value of the Horizontal line displayed on the Inertia Indicator (50 by default).

Inertia Plot Style: This option expands to show the following:

  • Plot Style - Allows you to change how the Inertia line is displayed on your chart. There are 6 options available: Line, Dot, Histogram, Step, Shaded, Shaded Step.
  • Line Style - The Line Style property allows you to adjust the type of the line displayed. There are 8 options available: Solid, Dots, Dash, Dash Dots, Long Dash, Long Dash Dot, Long Dash Dot Dot, Stippled.
  • Line Width - Allows you to adjust the width of the lines. Moving the slider bar to the right increases the thickness of the line.
  • Line Colour - Allows you to select the colour of the line. Clicking on the drop down arrow will display a colour swatch. Locate the desired colour and left-click it once to select it.

    Equilibrium Plot Style: Allows you to adjust the style, colour, and thickness of the Equilibrium line.

Offset: Moves the tool forward or backwards in time. The offset is measured in bars, so a value of 2 will push the tool forward 2 bars and -2 will move the tool back 2 bars.

Tool Transparency: Use this slider bar to adjust the transparency of the tool. Moving the slider to the left will increase the transparency of the tool.
Visible: Un-tick this checkbox to hide the tool from the chart.

Show In Price Scale: When selected the current Inertia value will be displayed in the Price Scale.
