Pythagorean Tools

Author: Optuma Team Last updated: Jul 7, 2021 00:57
Included in Gann Edition Included in Astro Edition


In October 2019 Connie Brown released her book, The Thirty-Second Jewel: Thirty-Years behind Market Charts from Price to W.D. Gann Time Cycles.

The book features many Optuma charts and tools, including the Pythagorean Channels and Square of 9 overlay that were designed especially for Connie. For more details on how to use these tools, please refer to the book.

Note: This tool requires at least the Gann Lite edition of Optuma, or the Gann tools add-on.

Pythagorean Square of 9 Overlay

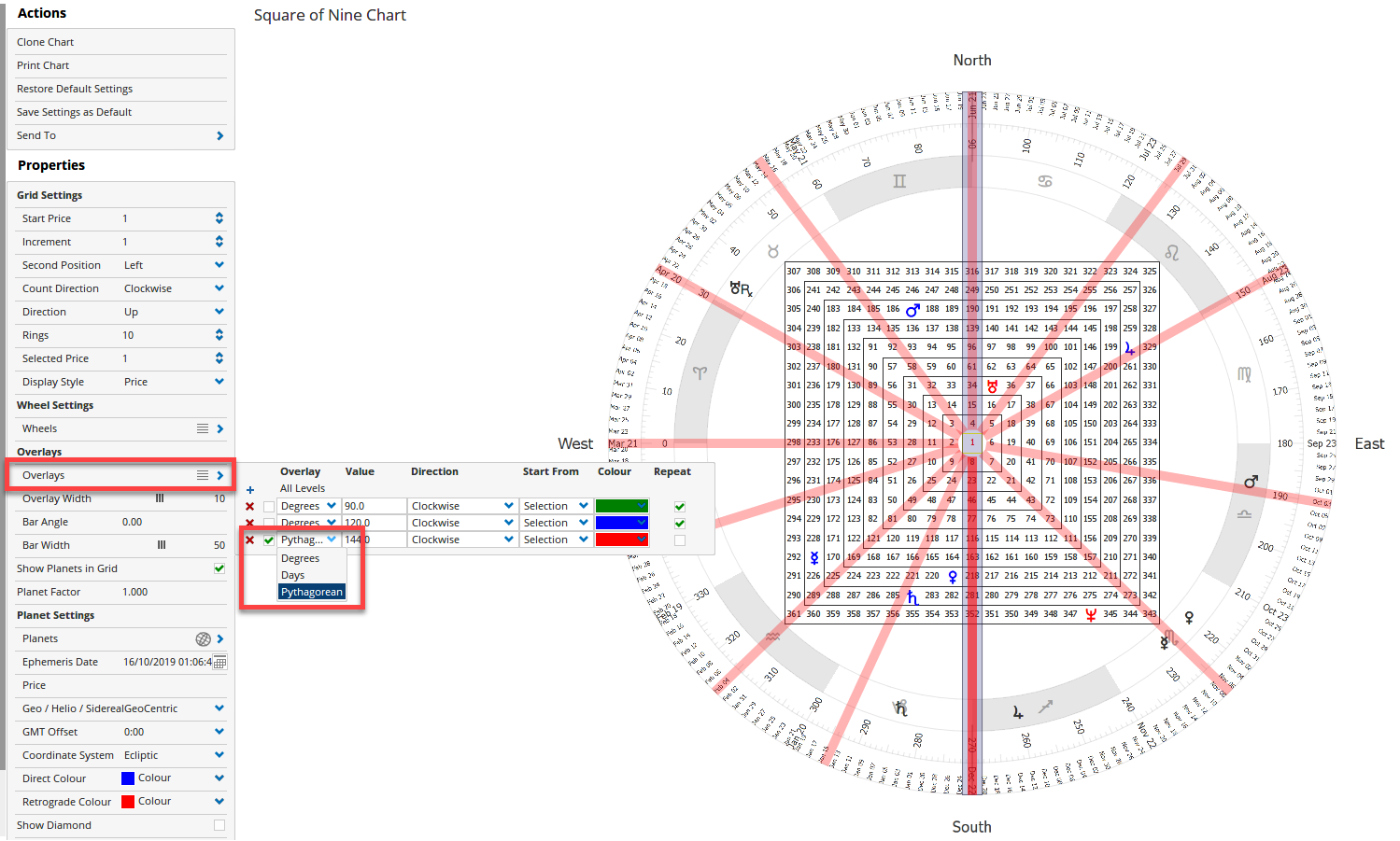

Select the Overlay property in the Square of 9 chart to apply the Pythagorean values:

Pythagorean Square of 9 Overlay

Pythagorean Channels

Pythagorean Channels draw parallel lines based on a user-defined channel range. The extensions are calculated using Pythagorean values (20.4, 40.8, 49.8, 70.2, etc) of the channel range.

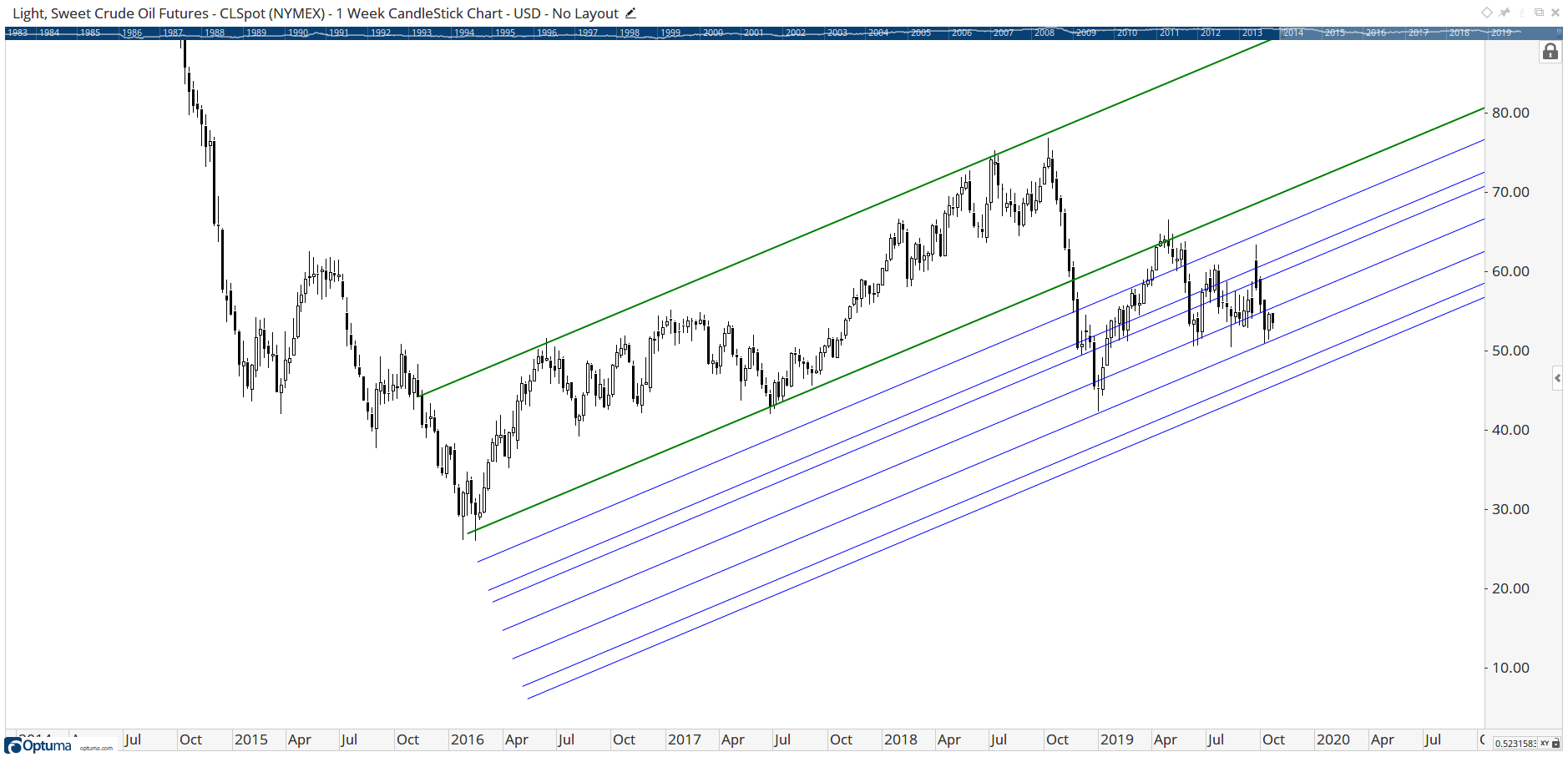

Pythagorean Channels

To add the tool to your chart, select the tool from the Brown tool group, and left-click on the first bar you want to calculate the tool from. Next, left-click on the bar where you want to calculate the tool to. Finally, left-click a third time where you want the levels to appear.

Actions & Properties



Add to Toolbar: Adds the selected tool to your custom toolbar.

Apply Settings to All: When multiple Pythagorean Channels tools have been applied to a chart, page or workbook, this action can be used to apply the settings of the one selected to other instances of the tool. This is a great time saver if an adjustment is made to the tool - such as line colour - as this allows all the other Pythagorean Channels tools in the chart, page or entire workbook to be updated instantly.

Copy Tool: Allows you to copy the selected tool, which can then be pasted onto a different chart window.

Move to Back: If the tool is displaying in front of other tools or indicators clicking this action will move the tool view to the background.

Move to Front: If the tool is displaying behind other tools or indicators on the chart, clicking this action will bring the tool to the forefront.

Restore Default Settings: Click this action if you have adjusted the default settings of the tool, and wish to return to the standard properties originally installed with Optuma.

Save Settings as Default: If you have adjusted any of the tool’s properties (colour, for example) you can save the adjustments as your new default setting. Each time you apply a new Pythagorean Channels to a chart, the tool will display using the new settings.

Delete: Deletes the tool from the chart.



Tool Name: Allows you to adjust the name of the tool, as it’s displayed in the Structure Panel.

Levels: Expands to show the available levels of the tool. You can untick specific levels to hide them from view.

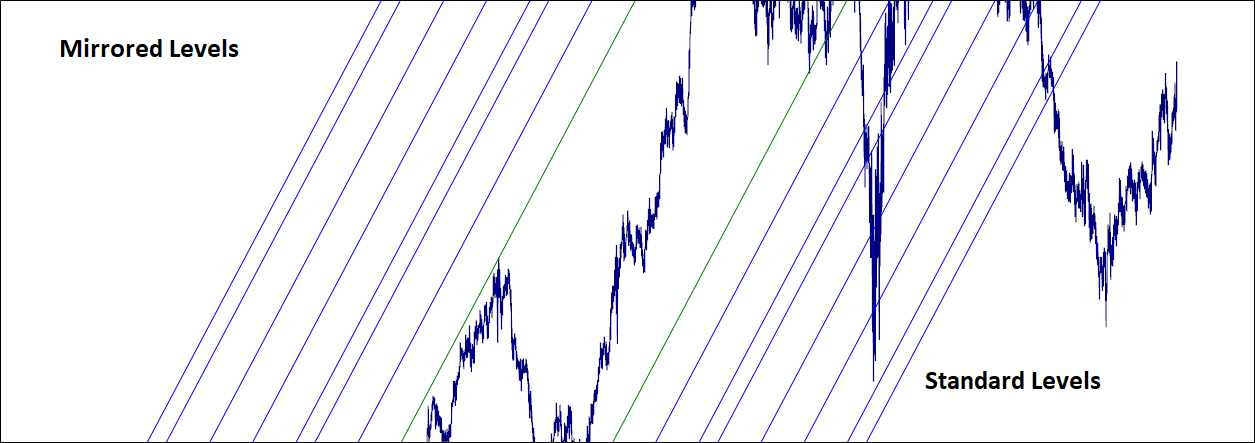

Mirror: Available from Optuma 2.0 and later, this checkbox allows you to place a copy of the standard levels above the manually positioned lines.


Repeats: Enables the tool to be repeated if required.

Extend Left: Check this box to extend the lines to the left.

Extend Right: Check this box to extend the lines to the right.

Line Style: Allows you to adjust the type of line displayed. There are 8 options available: Solid, Dots, Dash, Dash Dots, Long Dash, Long Dash Dot, Long Dash Dot Dot, Stippled.

Line Width: Allows you to adjust the width of the line for the tool. Moving the slider bar to the right increases the thickness of the line.

Line Colour: Allows you to adjust the colour of the line. Clicking on the drop down arrow will display a colour swatch. Locate the desired colour and left-click it once to select it.

Tool Transparency: Use this slider bar to adjust the transparency of the tool. Moving the slider to the left will increase the transparency of the tool.

Visible: Un-tick this checkbox to hide the tool from the chart.
