3D Ephemeris Chart

Author: Optuma Team Last updated: Jul 6, 2020 23:48


The Astro module of Optuma includes a fully user-definable 3D ephemeris which instantly displays any number of planets, asteroids, node positions and other planetary bodies, allowing key planetary relationships to be easily identified.

Non-standard items, such as minor asteroids, can be imported into the chart.

The ephemeris is broken up into the twelve houses of the zodiac and also takes into account declination, displaying the planetary bodies in their true position according to Longitude and Declination.Ephemeris2

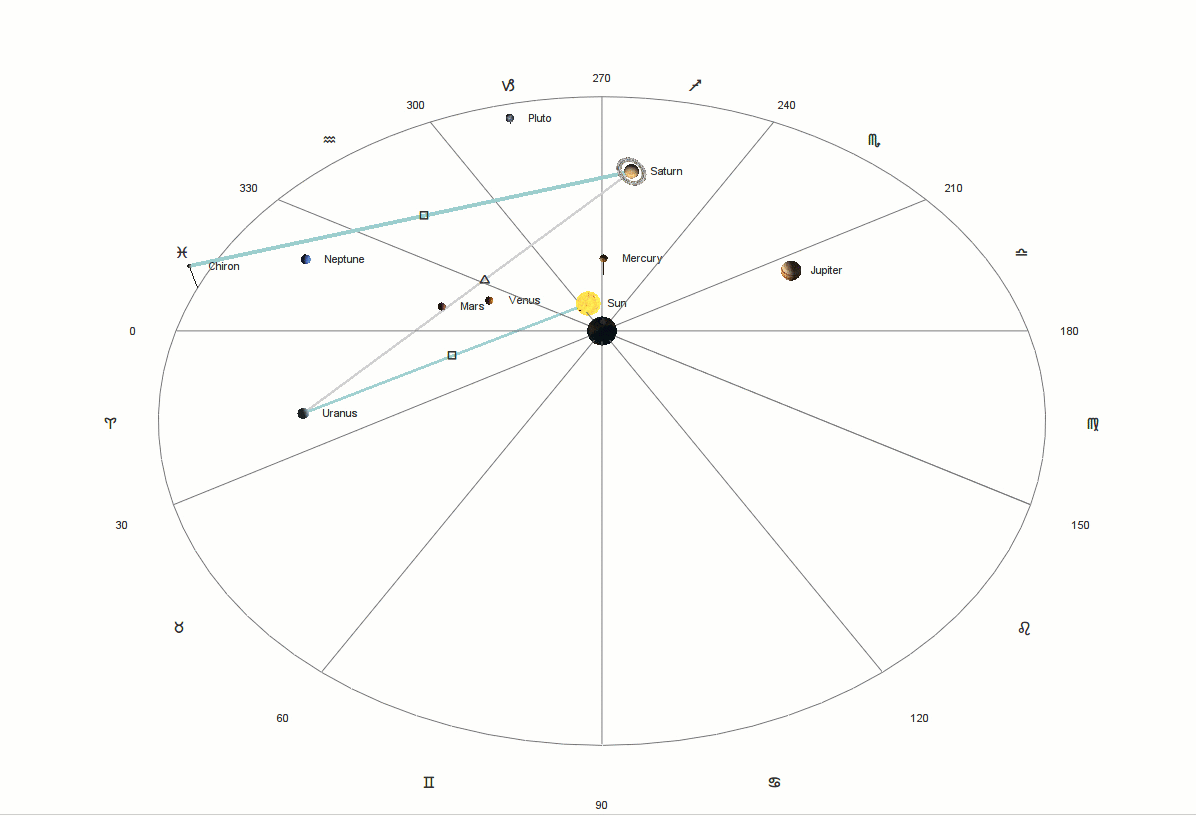

The above geocentric example shows that Neptune is square Jupiter (in retrograde) and Venus is trine Pluto (also in retrograde).

It’s also possible to have two ephemeris rings with different dates to look for relationships between planets on specific dates.

To access the ephemeris select it from the Astro folder located under the New menu.

The Ephemeris at a Glance

The Optuma 3D ephemeris shows the 360-degree circle with the selected planets / bodies in view inside the ephemeris.

The Structure Panel

When the ephemeris is opened a structure panel will appear on the right side of the screen. This is where date and time of the ephemeris can be set, and the planets, astro bodies and aspects to be displayed can be selected.

A new ephemeris will open at the current time and date. To change this, click on the date to open the navigation console:

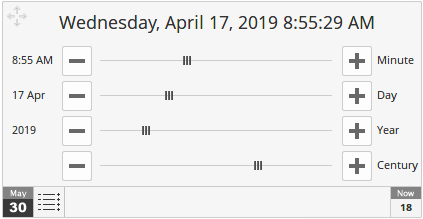

From here you can move forward and backwards in time, by either pressing the + or ‘-‘ buttons in minute, day, year or century increments. Alternatively, drag the slider to the left or right.

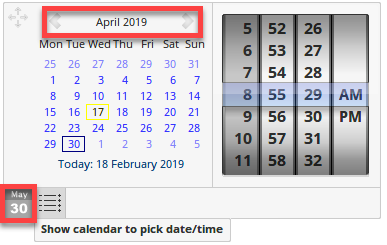

To select a specific date click on the date icon in the bottom-left corner to open a calendar.


To select the objects to be displayed on the ephemeris click on the + and - to expand or hide the group, and tick the required boxes. The bodies available are:

Main Planets:

Ephemeris Chart 7

Lunar Nodes:

Ephemeris Chart 8

Major Asteroids:

Ephemeris Chart 9

Uranian Planets:

Ephemeris Chart 10

Fictitious Bodies:

Ephemeris Chart 11

Fixed Stars:

Ephemeris Chart 12

Planet Averages:

The Mean of 5 is the longitude of Jupiter+Saturn+Uranus+Neptune+Pluto divided by 5.The Circle of 8 is Mercury+Venus+Mars+Jupiter+Saturn+Uranus+Neptune+Pluto divided by 8

Ephemeris Chart 13

Natal Houses:


Note: Natal Houses will only show when the ephemeris view is set to Topocentric in the Properties panel.

The Houses and Angles

The ephemeris is broken up into the twelve houses of the zodiac. The angle of each house is displayed on the outside of the circle, starting from zero degrees Aries.

Located in the middle of each house is its symbol:

House Symbol Ephemeris Angles
Aries ? 0 – 29 degrees
Taurus ? 30 – 59 degrees
Gemini ? 60 – 89 degrees
Cancer ? 90 – 119 degrees
Leo ? 120 – 149 degrees
Virgo ? 150 – 179 degrees
Libra ? 180 – 209 degrees
Scorpio ? 210 – 239 degrees
Sagittarius ? 240 – 269 degrees
Capricorn ? 270 – 299 degrees
Aquarius ? 300 – 329 degrees
Pisces ? 330 – 360 degrees

The Planets

The selected planets will be displayed inside the ephemeris using either the Earth or the Sun as the centre point (depending on whether Geocentric, Sidereal or Heliocentric has been selected)

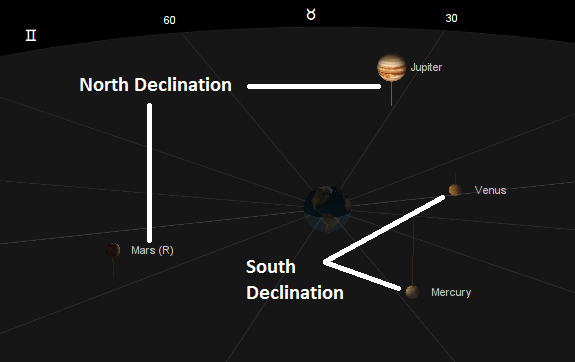

A line joining the ephemeris and the planet will be displayed to indicate whether the planet has a North or South declination to the Sun or Earth. The length of the line will also give an indication as to where a planet’s declination is in relation to other planetary bodies.

Ephemeris Chart 2

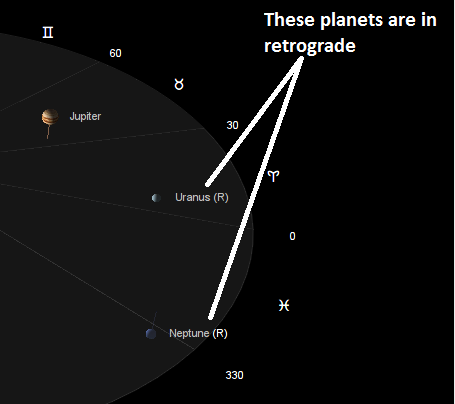

Where a planetary body has an (R) next to it, this is an indication that it is in retrograde.

Ephemeris Chart 3

The Ephemeris Functionality

Moving the Ephemeris

The Optuma ephemeris can be moved in any direction to allow you to view any aspect of the ephemeris from any angle.

To move the ephemeris, place the mouse pointer in any location and hold the left mouse button down. While the left mouse button is held down, move the mouse pointer left or right to move the ephemeris around. Move the mouse up or down to change the angle at which the ephemeris is viewed.

Zooming in and out of the Ephemeris

To zoom in and out of the ephemeris, hold the right mouse button down and move the mouse away from you to zoom out, and towards you to zoom in.

How to Import Additional Asteroids

Optuma allows for the manual importing of additional asteroids that aren’t already in Optuma. For more information, click here.

Actions & Properties


Ephemeris Chart 4
Clone Chart: When selected, the existing chart will be duplicated. It will be placed above the existing chart, from here it can either be moved to a new page or tiled alongside your existing chart(s).

Print Chart: Prints the active page, which is opened as a PDF.

Restore Default Settings: Click this action if you have adjusted the default settings of the Ephemeris, and wish to return to the standard properties originally installed with Optuma.

Save Aspects to Clipboard: Copies the raw data values of the selected aspects (planets, dates, aspects, angle) to your clipboard, which can then be used in other programs (such as Notepad, Excel, etc).

Save Planets to Clipboard: Copies the raw data values of the selected planets (name, right ascension, declination) to your clipboard, which can then be used in other programs (such as Notepad, Excel, etc).

Save Settings as Default: If you have adjusted any of the ephemeris settings (selected planets and aspects, for example) you can save the adjustments as your new default setting. Each time you open a new ephemeris it will display using the new settings.

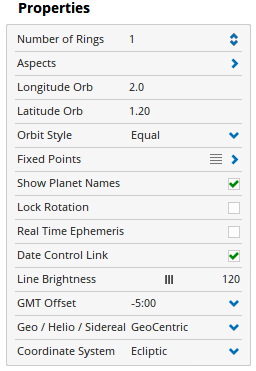

Ephemeris Chart 5
Number of Rings: Click here to increases the number of rings in the ephemeris. If a second ring is selected then the second ephemeris date will appear in the structure panel, and Inter-Ring Aspects or Intra-Ring Aspects can be selected in the Properties.


Aspects: The key relationships selected between planets will be highlighted on the ephemeris when they occur. The following aspects are available:

  • Conjunction – planets are within zero degrees of each other
  • SemiSextile – 30 degrees
  • SemiSquare – 45 degrees
  • Sextile – 60 degrees
  • Quintile – 72 degrees
  • Square – 90 degrees
  • Trine – 120 degrees
  • Sesquiquadrate – 135 degrees
  • BiQuintile – 144 degrees
  • Quincunx – 150 degrees
  • Opposition – 180 degrees
  • Parallel – equal declination
  • Contra-Parallel – opposite declination

Longitude Orb: Allows you to adjust the tolerance for what constitutes a planetary relationship. For example, if the sextile (60 degrees) aspect is used and the orb is set to 2 then Optuma will consider any planetary relationship between 58 degrees and 62 degrees as having met a sextile relationship.

Latitude Orb: Allows you to adjust the tolerance for the declination (only applicable for the Parallel and Contra-Parallel aspects) For example, if the declination orb is set to 2 then Optuma will consider planets to be parallel if their declinations are within 2 degrees of each other.

Orbit Style: Choose how the planets are positioned:

  • Equal – all planets are an equal distance apart
  • Outside – places all planets on the outside ring of the ephemeris
  • Real – all planets are a proportionate distance apart
  • Real (log) – uses a logarithmic calculation, based on their proportionate distances from each other, to position the planets on the ephemeris.
  • Fixed Points: Manually enter the angle and name of fixed points.

Show Planet Names: Untick this box to remove the names of the planets from the ephemeris.

Lock Rotation: Tick this box to prevent the ephemeris from rotating.

Real Time Ephemeris: The ephemeris will show the time and date when it was opened. Click here to have the ephemeris continue to update in real-time.

Date Control Link: When using the Open for Date action, this property allows you to choose between having the Ephemeris chart linked to the chart. Select a colour from the diamond grouping icon and a vertical line with that colour will appear on the price chart. As the green line is moved on the chart the ephemeris will also move to correspond to the date:


Line Brightness: Use the slider to adjust the brightness of the lines dividing the houses.

GMT Offset: Use this option to adjust the ephemeris time zone setting for a specific market. Select the required GMT setting and the ephemeris will automatically update.

Geo/Helio/Sidereal: Allows you to choose the ephemeris view between GeoCentric, HelioCentric, Sidereal and TopoCentric.

Coordinate System: Changes the planetary positions based on equatorial or ecliptic coordinates.
