Anti-Volume Stop Loss

Author: Optuma Team Last updated: Jul 3, 2021 01:31
Included in Trader Services Included in Professional Services Included in Enterprise Services

The Anti-Volume Stop Loss is based on the work of Buff Dormeier, CMT.

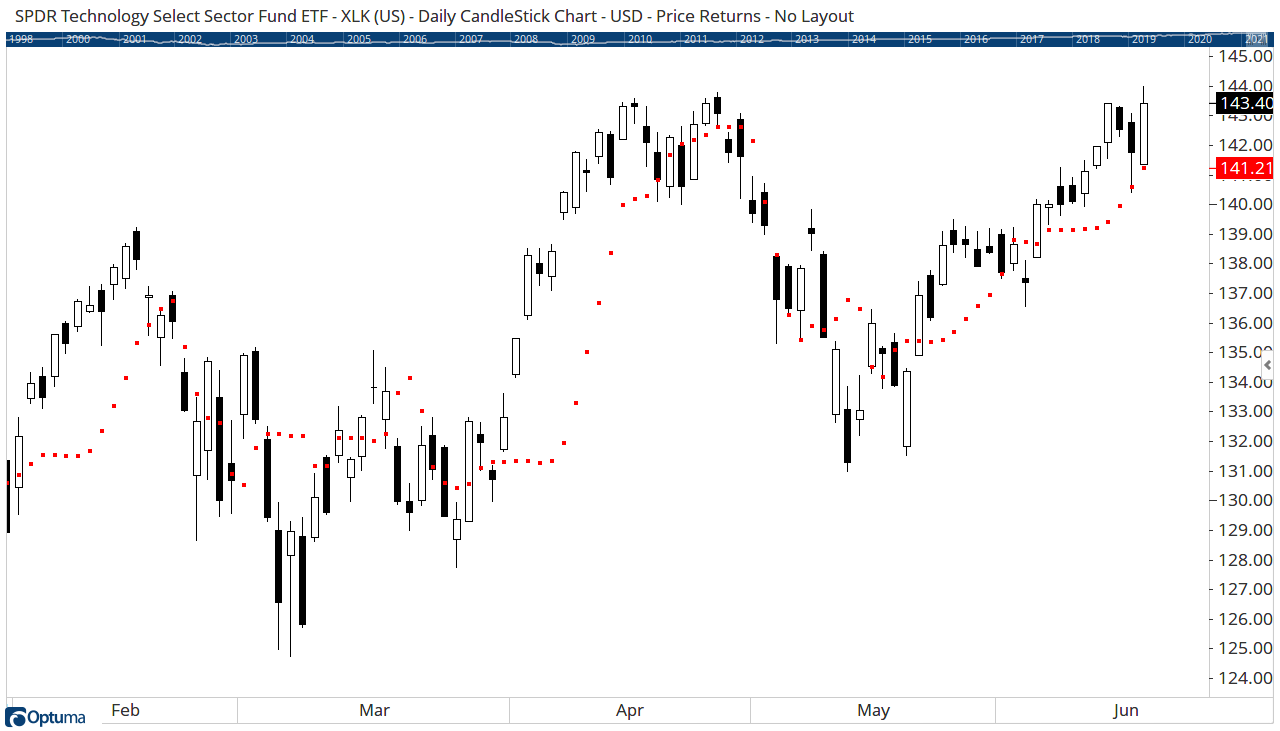

Capture

Actions & Properties

Actions

Actions

Copy Data to Clipboard: Will copy the tool’s values to the clipboard which can then be inserted into a spreadsheet, for example, allowing for further analysis.

Add to Toolbar: Adds the selected tool to your custom toolbar.

Apply Settings to All: When multiple AVSL tools have been applied to a chart, page or workbook, this action can be used to apply the settings of the one selected to other instances of the tool. This is a great time saver if an adjustment is made to the tool - such as line colour - as this allows all the other AVSL tools in the chart, page or entire workbook to be updated instantly.

Copy Tool: Allows you to copy the selected tool, which can then be pasted onto a different chart window.

Move to Back: If the tool is displaying in front of other tools or indicators clicking this action will move the tool view to the background.

Move to Front: If the tool is displaying behind other tools or indicators on the chart, clicking this action will bring the tool to the forefront.

Restore Default Settings: Click this action if you have adjusted the default settings of the tool, and wish to return to the standard properties originally installed with Optuma.

Save Settings as Default: If you have adjusted any of the tool’s properties (colour, for example) you can save the adjustments as your new default setting. Each time you apply a new AVSL to a chart, the tool will display using the new settings.

Delete: Deletes the tool from the chart.

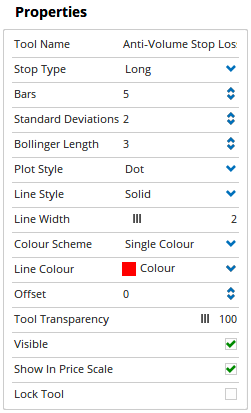

Properties

Properties

Tool Name: Allows you to adjust the name of the tool, as it’s displayed in the Structure Panel.

Stop Type: Long stop places the stop below the bars, and a short stop above.
Bars: The number of bars that are used in the tool.
Standard Deviations: The number of standard deviations used in the calculation.

Bollinger Length: The Bollinger Band value used in the tool calculation.

Plot Style: Select from Dot, Line, Dash, etc.

Line Style: Select from Solid, Dash, Stippled, etc.

Line Width: Adjust the width of the tool.

Line Colour: Adjust the colour of the tool.

Offset: Moves the tool forward or backwards in time. The offset is measured in bars, so a value of 2 will push the tool forward 2 bars and -2 will move the tool back 2 bars.

Tool Transparency: Use this slider bar to adjust the transparency of the tool. Moving the slider to the left will increase the transparency of the tool.

Visible: Un-tick this checkbox to hide the tool from the chart.

Show in Price Scale: When selected, the current AVSL value will be displayed in the Price Scale.

Lock Tool: When selected, any changes to the tool will be prevented from being made.
