Bands

Author: Optuma Team Last updated: Jul 7, 2022 10:07

Overview

The Bands tool is designed to work with other tools within Optuma. For example, if you apply a Rate of Change tool to your chart, the Bands tool can be applied to the ROC, and set up to display levels above / below the main ROC line using either Percentages, Standard Deviations, or Average True Range.

BandsTool1

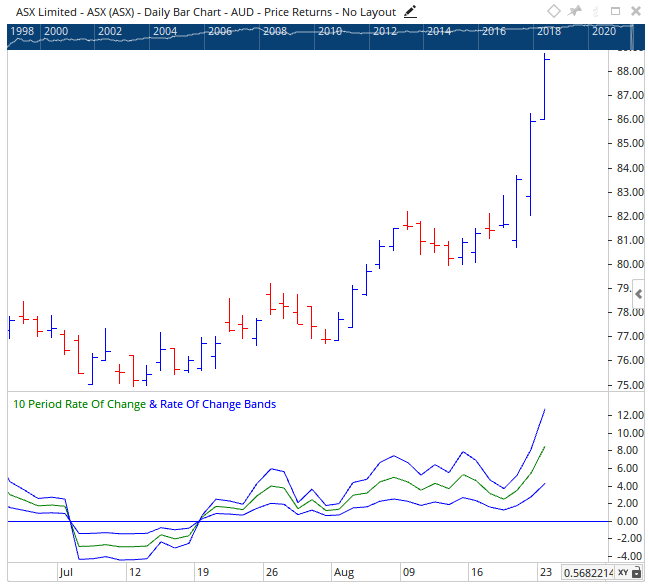

In the above example, the Bands tool is set to shows 50% Levels above and below the central ROC line.

To apply the Bands tool, firstly apply a plot-based tool (Moving Average, ROC, ATR, etc), it will not work with static tools like Trend Lines. With the underlying tool applied, go to Tools - Price - Bands and left-click on the tool the bands will calculate from.

Actions & Properties

Actions

BandsTool2

Copy Data to Clipboard: Will copy the tool’s values to the clipboard which can then be inserted into a spreadsheet, for example, allowing for further analysis.

Add to Toolbar: Adds the selected tool to your custom toolbar.

Apply Settings to All: When multiple Bands tools have been applied to a chart, page or workbook, this action can be used to apply the settings of the one selected to other instances of the tool. This is a great time saver if an adjustment is made to the tool - such as line colour - as this allows all the other Bands tools in the chart, page or entire workbook to be updated instantly.

Copy Tool: This allows you to copy the selected tool, which can then be pasted onto a different chart window.

Move to Back: If the tool is displaying in front of other tools or indicators clicking this action will move the tool view to the background.

Move to Front: If the tool is displaying behind other tools or indicators on the chart, clicking this action will bring the tool to the forefront.

Restore Default Settings: Click this action if you have adjusted the default settings of the tool, and wish to return to the standard properties originally installed with Optuma.

Save Settings as Default: If you have adjusted any of the tool’s properties (colour, for example) you can save the adjustments as your new default setting. Each time you apply a new Bands tool to a chart, the tool will display using the new settings.

Delete: Deletes the tool from the chart.

Properties

BandsTool3

Tool Name: This allows you to adjust the name of the tool, as it’s displayed in the Structures Panel.

Source: When multiple plots exist on the chart, this dropdown will allow you to select the specific plot you are wanting the bands to calculate from.

Bands: This section expands to show the levels editor. From here you can add / remove bands to the underlying plot and select between Percentage, Standard Deviation and Average True Range, as well as setting display style.

BandsATRMult

Click the + icon to add a new set of bands. Click the x icon to delete an existing level.

  • Band Calculation - Select how the bands are calculated (Percentage, Standard Deviations or Average True Range).
  • Value - Enter the value you want to bands to use in their calculation (50 for 50% as an example).
  • Multiplier - Available from Optuma 2.1 the ATR Band levels support a Multiplier value.
  • Direction - This allows you to select the direction of the bands (Both by default), Up or Down.
  • Line Style - This allows you to adjust the line type and colour of the bands.

Offset: Moves the tool forward or backwards in time. The offset is measured in bars, so a value of 2 will push the tool forward 2 bars and -2 will move the tool back 2 bars.

Tool Transparency: Use this slider bar to adjust the transparency of the tool. Moving the slider to the left will increase the transparency of the tool.

Visible: Un-tick this checkbox to hide the tool from the chart.

Show in Price Scale: When selected the current Bands value will be displayed in the Price Scale.

Lock Tool: Ticking this checkbox will lock the tool so that no other properties can be modified.
